NCP5680

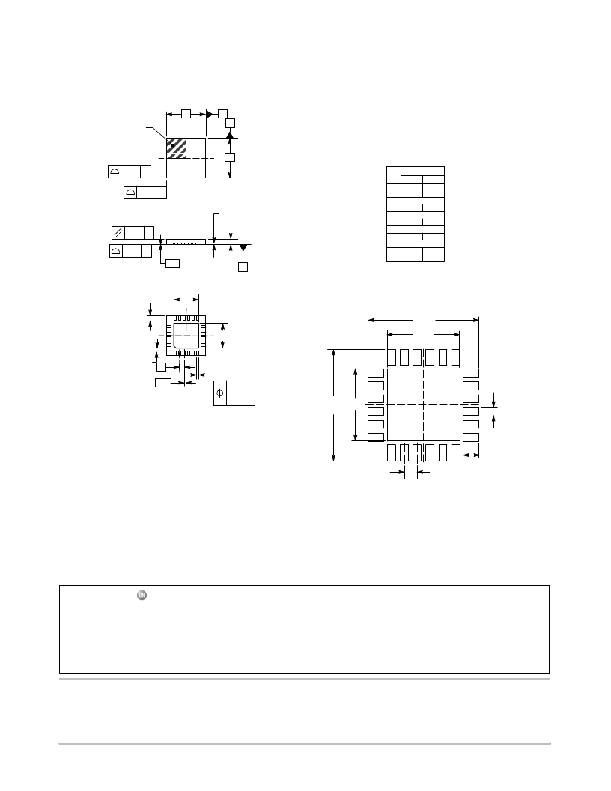

PACKAGE DIMENSIONS
PIN ONE
REFERENCE
2X
D
A
B
E
UQFN24 3.5x3.5, 0.4P
CASE 523AG ? 01
ISSUE O
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. DIMENSION b APPLIES TO PLATED
TERMINAL AND IS MEASURED BETWEEN
0.15 AND 0.30 MM FROM TERMINAL.
4. COPLANARITY APPLIES TO THE EXPOSED
PAD AS WELL AS THE TERMINALS.
0.15 C
MILLIMETERS
2X 0.15 C
0.10 C
0.08 C
NOTE 4
TOP VIEW
A1
SIDE VIEW
A3
A
C
SEATING
PLANE
DIM
A
A1
A3
b
D
D2
E
E2
e
L
K
MIN MAX
0.45 0.55
0.00 0.05
0.13 REF
0.15 0.25
3.50 BSC
2.10 2.30
3.50 BSC
2.10 2.30
0.40 BSC
0.30 0.50
0.20 ???
24X
L
6
7
D2
13
SOLDERING FOOTPRINT*
3.90
1
E2
2.30
24X
K
24 19
e
e/2
BOTTOM VIEW
24X
b
0.10 C A B
0.05 C NOTE 3
3.90 2.30
1
24X
0.24
24X
0.65
0.40
PITCH
DIMENSIONS: MILLIMETERS
*For additional information on our Pb ? Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
